How to Install Barn Door Hardware: Step-by-Step Guide

Installing barn door hardware is a manageable DIY project, but it requires precision at the mounting stage — everything downstream depends on the header board and track being level and anchored into solid structure. This guide covers the full installation process from wall prep to final adjustment.

What Is in a Barn Door Hardware Kit

Most barn door hardware kits include:

• Sliding track (steel or aluminum, typically 2x the door width)
• Hangers (the wheel assemblies that attach to the door and ride the track)
• Track end stops (prevent the door from sliding off the track)
• Floor guide (keeps the bottom of the door from swinging)
• Wall spacers or standoffs (create clearance between the track and wall)
• Lag screws and mounting hardware

Before purchasing, you need the door width. Your track should be at least double the door width to allow the door to slide fully open.

Step 1: Find and Mark Solid Structure

Barn door hardware carries real weight. The track and door together can exceed 100 pounds, and the forces during sliding put lateral stress on every mounting point. You must anchor into wall studs, a structural header, or a mounted header board that itself is anchored into studs.

Use a stud finder to locate studs in the wall above your doorway. Mark each stud. Standard spacing is 16 inches on center.

Step 2: Install the Header Board (If Needed)

Cut a piece of 2x8 lumber at least as wide as the track. Position it horizontally above the doorway at the height where the track will mount. The door needs to hang clear of the floor by about 1/2 inch.

Anchor the header board into at least two studs with 3-inch structural screws or lag bolts. The board should be flush to the wall.

Step 3: Mark Track Position

Determine the exact height for the track. Calculate: floor to bottom of door clearance (1/2 inch) plus door height plus hanger drop distance (usually 1.5 to 2 inches from your hardware specs). That total is where the centerline of the track should sit.

Mark a level line at that height across the full track mounting area.

Step 4: Mount the Track

Hold the track against the wall along your level line. Mark the mounting hole positions. Drill pilot holes at each mark.

Attach the track using the lag screws provided. If your kit includes standoffs or spacers, install those first — they create clearance between the door and the wall so the door can slide without rubbing.

Tighten all lag screws firmly. The track should not shift or flex when you push on it.

Step 5: Attach Hangers to the Door

Lay the door flat. Attach the hanger assemblies to the top edge of the door following your hardware's instructions. Most systems use two hangers, one near each end of the door.

The closer to the edges, the more stable the door. Follow the manufacturer's recommended placement. Drive the bolts snugly but leave them slightly loose until the door is hung and adjusted.

Step 6: Install the End Stops

Before hanging the door, install the end stops on the track — one at each end. These prevent the door from rolling off the track. Install them now because it is harder to reach the ends once the door is hung.

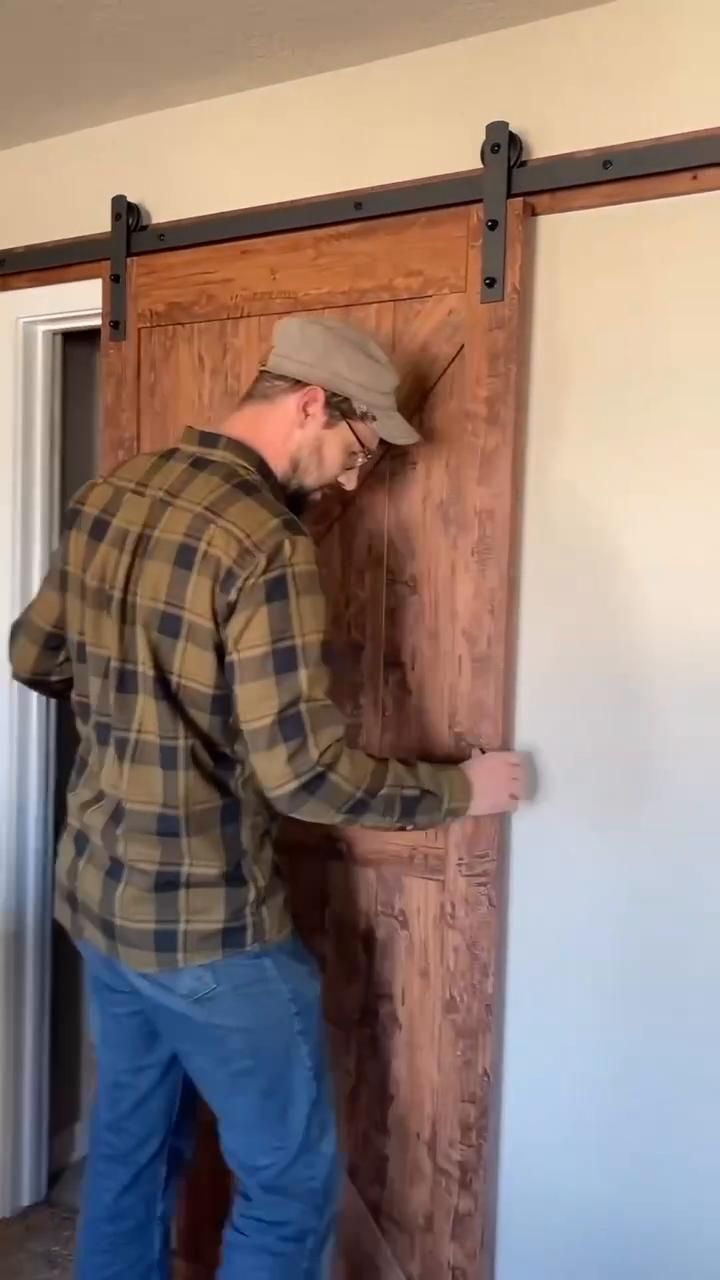

Step 7: Hang the Door

Lift the door and hook the hanger wheels onto the track. This requires two people — one to lift and hold the door, one to set the hangers onto the track. The door is heavy and the track is up high; attempting this solo risks dropping the door or scratching the wall.

Once on the track, slide the door back and forth. It should roll smoothly without wobbling side to side.

Step 8: Adjust and Tighten Hangers

Most barn door hangers have an adjustment mechanism that raises or lowers each side of the door independently. Use this to make the door hang perfectly plumb. Check with a level on the door face. Once level, tighten all hanger bolts fully.

Step 9: Install the Floor Guide

The floor guide is a small bracket that mounts to the floor at the bottom of the door's travel path. It keeps the bottom of the door from swinging in or out from the wall.

Position the floor guide directly below the door's edge when the door is in the closed position. Adjust so the door moves freely but does not have significant side-to-side play.

Step 10: Install Door Pulls and Soft-Close

Mount door pulls or handles to both faces of the door for easy opening from either side. If your hardware kit includes a soft-close mechanism, install it per the manufacturer's instructions — it mounts to the track and dampens the door as it reaches the end of travel.

Common Mistakes to Avoid

• Not anchoring into studs — the weight and lateral forces will pull wall anchors out over time
• Track not level — the door will drift to the low end every time it is moved
• Insufficient track length — the door can not open fully; track should be at minimum 2x the door width
• No floor guide — the door will swing away from the wall and potentially damage the wall or trim
• Wrong standoff depth — if standoffs are too shallow, the door will rub against wall trim or outlet covers

Shop Dogberry's barn door hardware — heavy-duty steel track and hangers designed for solid wood doors up to 200 pounds.

Frequently Asked Questions

How long should barn door track be?

The track should be at least twice the width of the door. A 36-inch door needs at least a 72-inch track to slide fully open without blocking the doorway.

Do barn doors need a header board?

Not always. If wall studs fall at usable mounting positions, you can mount directly to them. But when studs do not align with the required mounting pattern, a header board made from 2x6 or 2x8 lumber anchored into two or more studs is required.

How much clearance does a barn door need from the wall?

Standard clearance is 1 to 1.5 inches from the wall face to the door face. This needs to be enough to clear any baseboards, trim, or outlet covers that the door passes over when sliding.

Can barn door hardware hold a heavy solid wood door?

Yes, if rated for the weight. Most residential barn door hardware kits are rated for 150 to 200 pounds. Check the kit weight rating before purchasing. A solid wood door 36 inches wide and 84 inches tall can weigh 80 to 120 pounds depending on wood species.

How do you keep a barn door from swinging away from the wall?

Install a floor guide. This small bracket attaches to the floor and captures the bottom edge of the door, preventing it from swinging in or out from the wall.

Can I install barn door hardware myself?

Yes, with the right tools and a helper. The most critical step is correctly anchoring the track into solid structure. If you can locate studs and have someone to help lift the door onto the track, this is a manageable weekend project.
