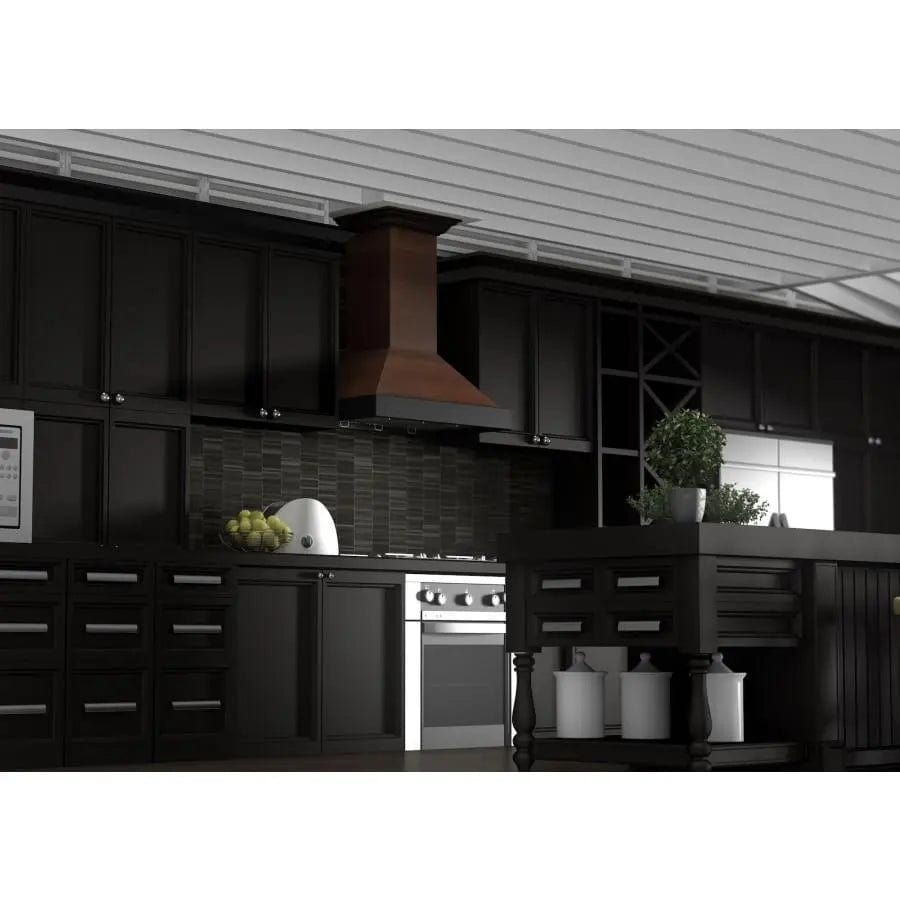

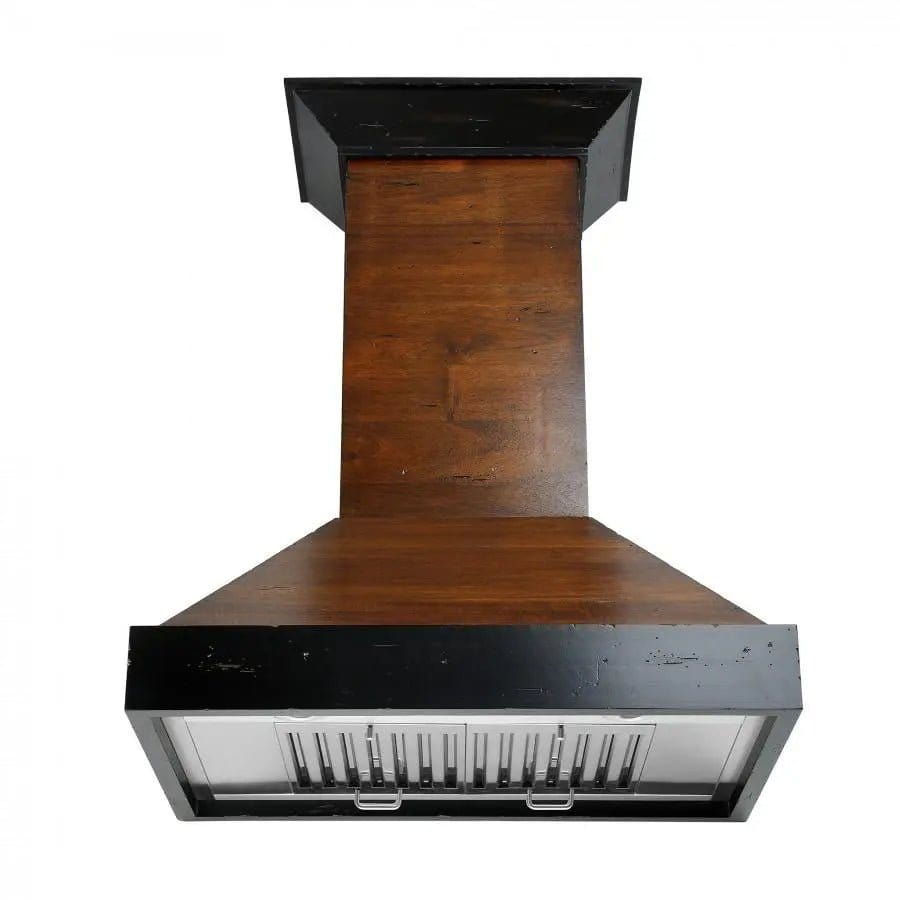

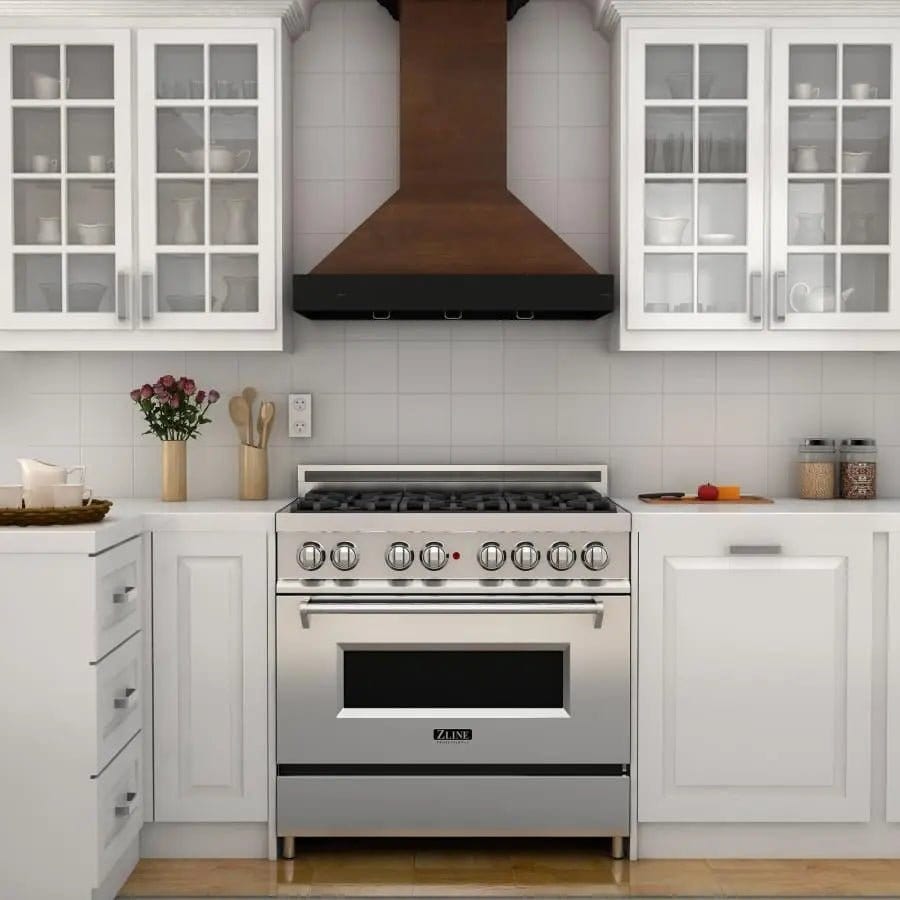

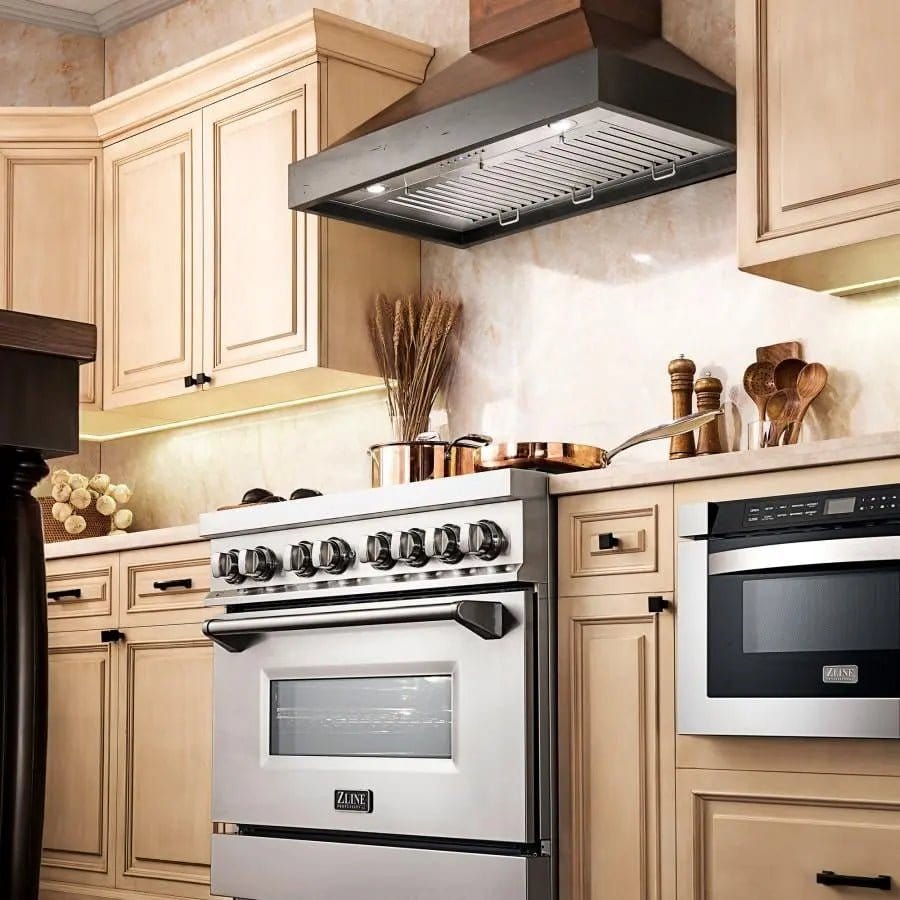

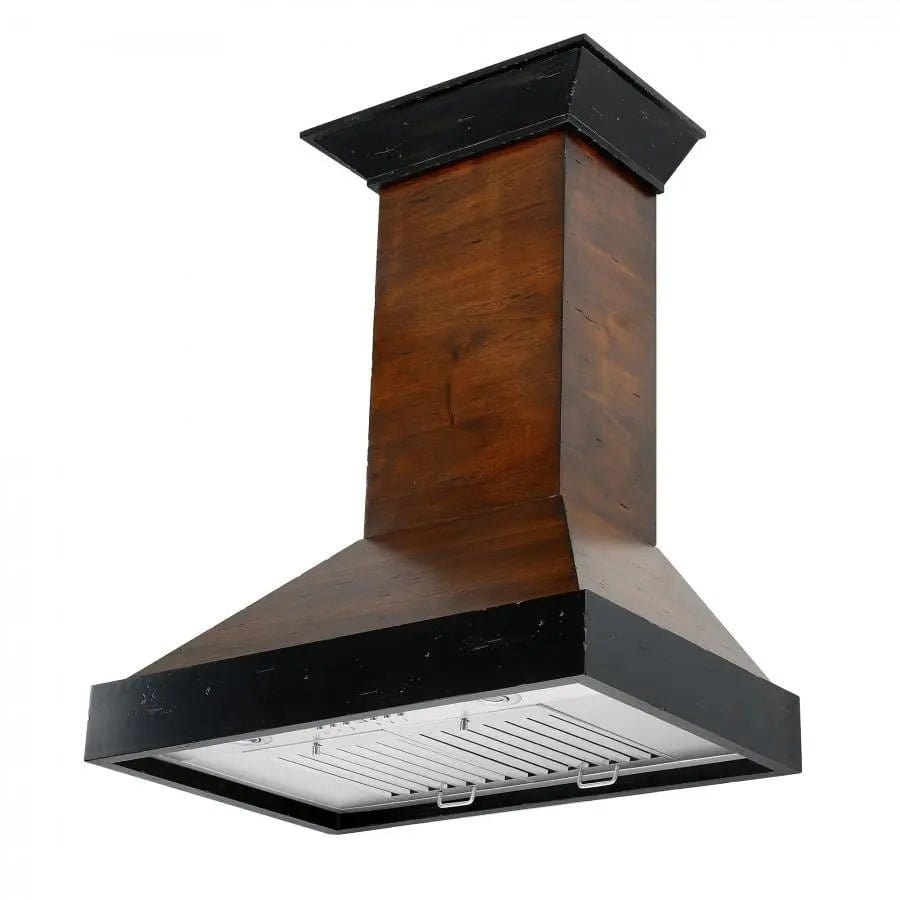

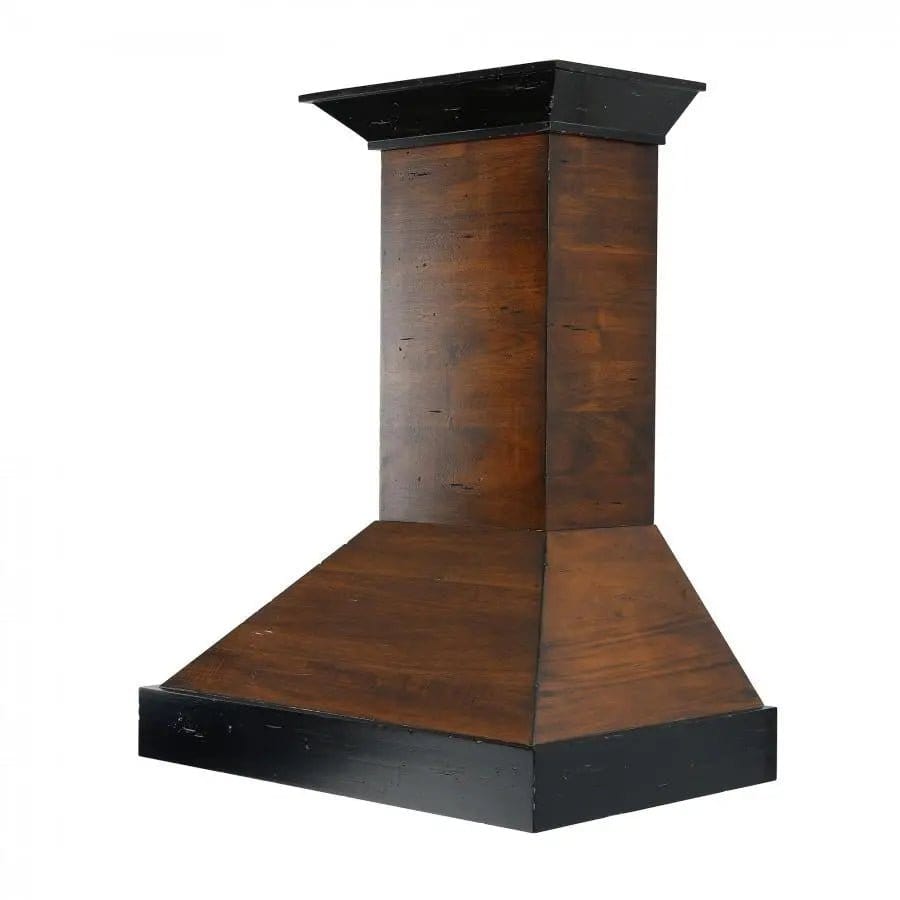

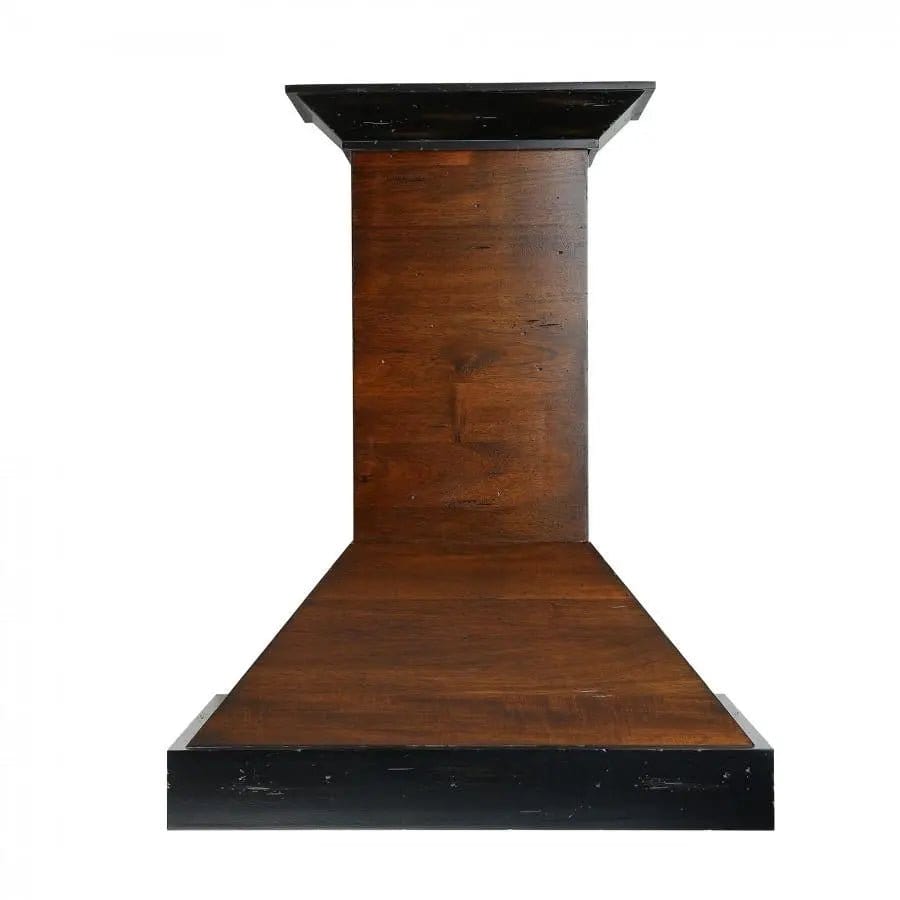

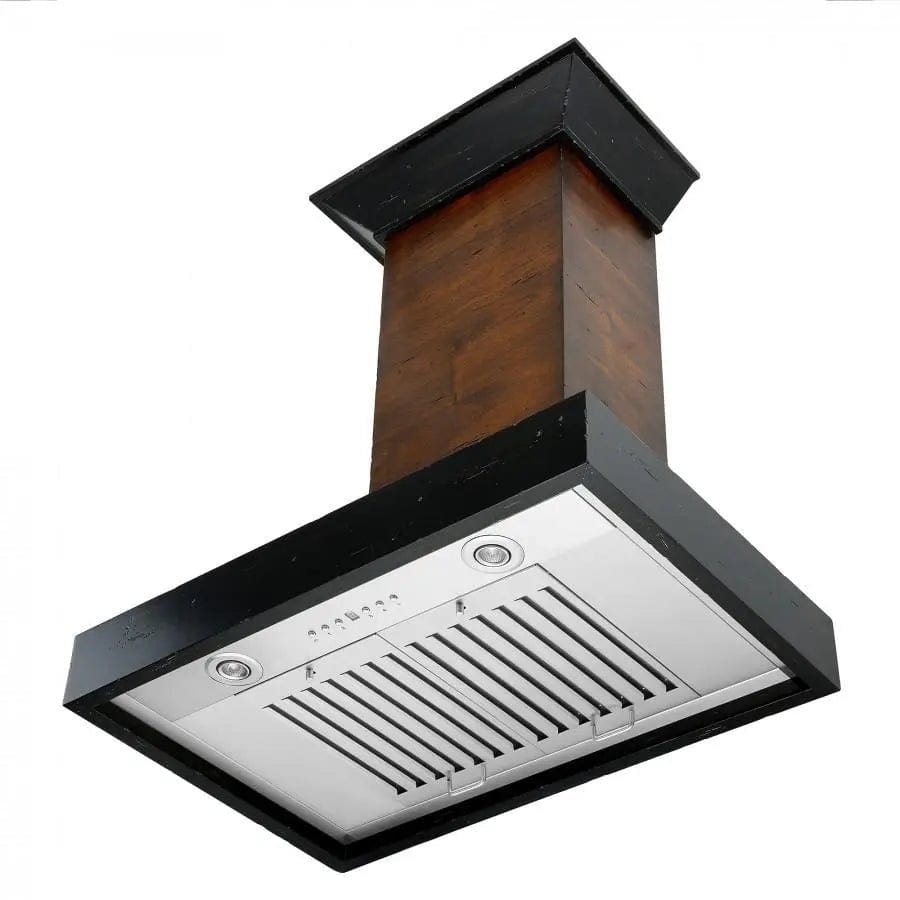

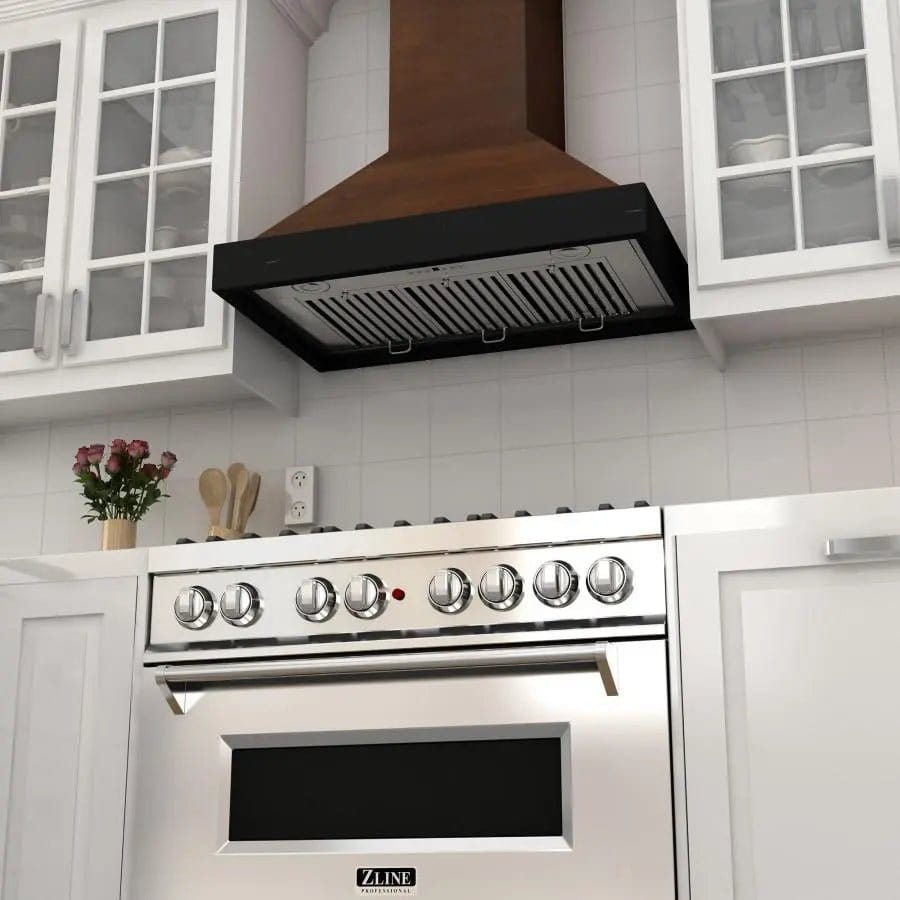

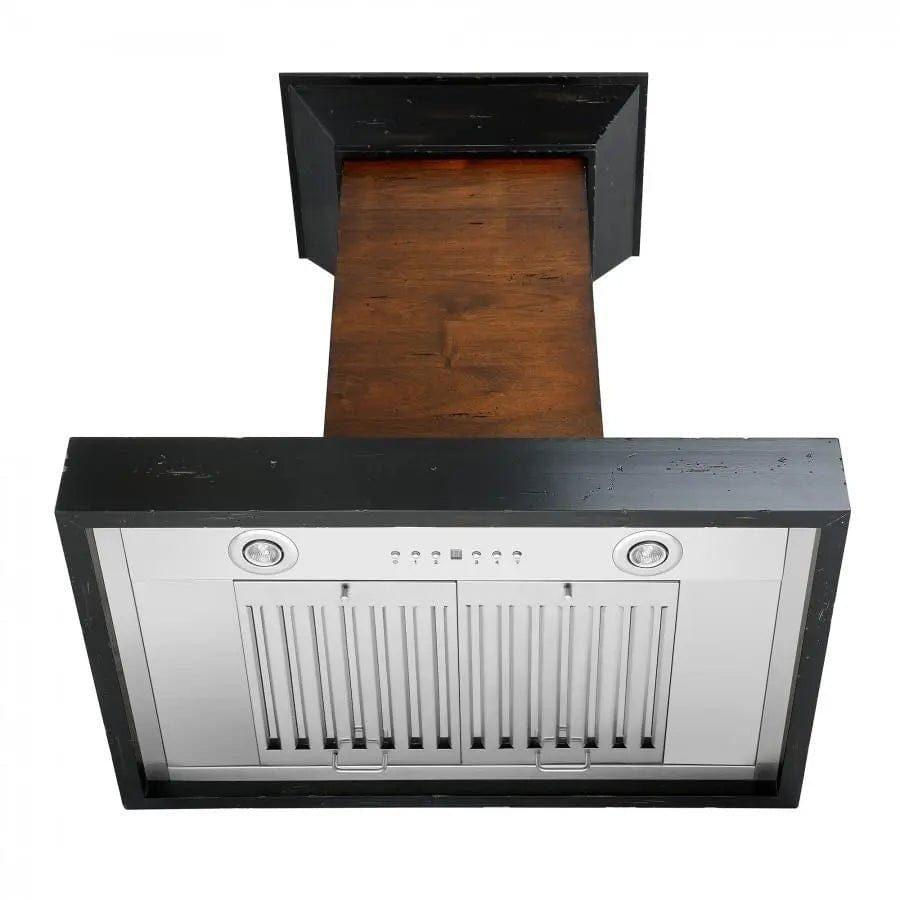

The ZLINE KBAR-48 is a 48-inch wall mount wooden range hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. The hand-finished wood with Antigua paneling and a walnut base is made from solid pine with a stainless steel inner frame, making it both durable and long-lasting.
This hood will fit most ceilings up to 9.5 feet, though the chimney is designed to be cut to fit lower ceilings. Ductless/recirculating operation is available (requires CF1 kit and vented crown molding CM6V-KBAR). No extension or short kit is required for ceilings under 9.5'; ceilings from 9.5' to 12.5' require the KBAR-E extension. Not certified for outdoor use. Also available in 30" (KBAR-30), 36" (KBAR-36), and 42" (KBAR-42) widths.
Key Features
- Hand-carved, hand-finished wood
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM
Specifications
| Brand | ZLINE Kitchen and Bath |

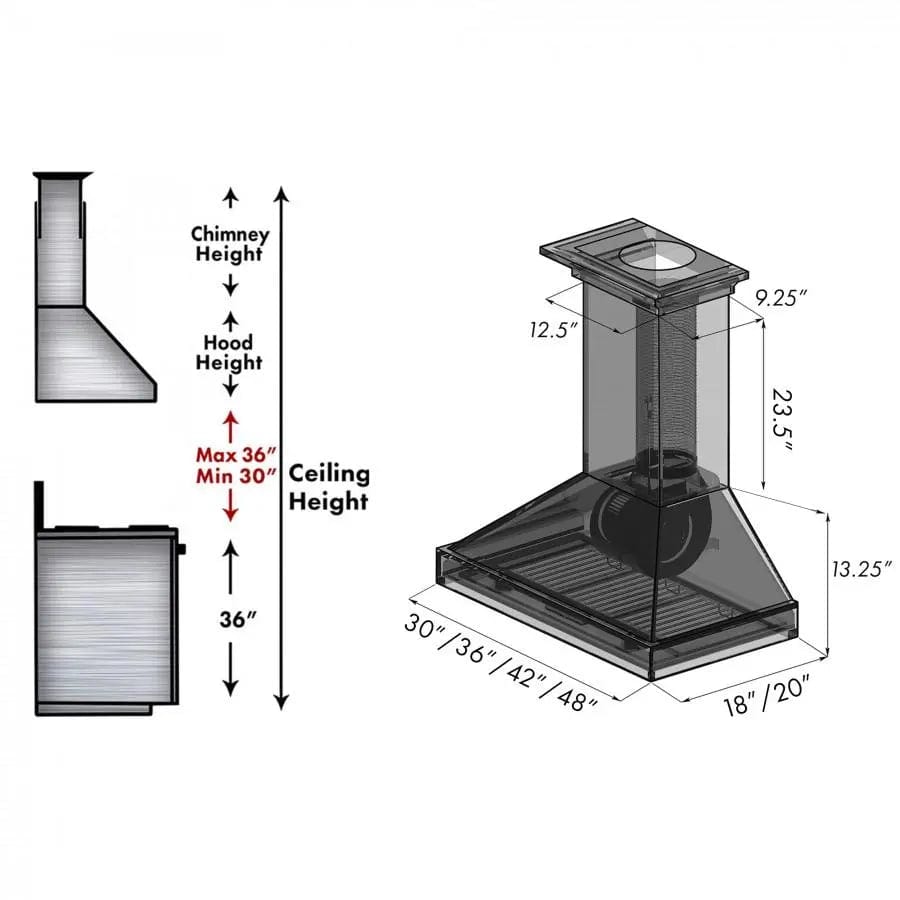

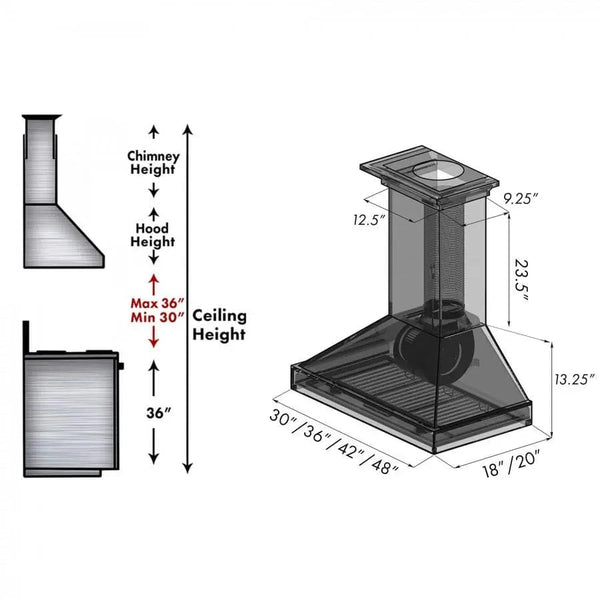

| Dimension | 48" W x 19.7" D x 13.25" H |
| Chimney | 12.5" W x 9.25" D x 23.5" H |
| Venting Size | 6" Outlet (Transition piece to round ducting included) |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Lighting | 2 Directional LED Lights (3-Watt) |
| Noise Level | 20/29/34/41 (Decibels) |
| Voltage | 110V/60HZ |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Mount Type | Wall Mount Range Hood |
| Speeds | 4 Speeds |
| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Material | Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua (Black) Front Band |
| Warranty | 3 Year Parts Warranty |
| Features | Model No. KBAR-48 (ETL Listed); Chimney Extension: Model No. KBAR-E |
| UPC | 817299021124 |
| Certifications | ETL Listed |
| Installation and User Manual | Click here to view |
